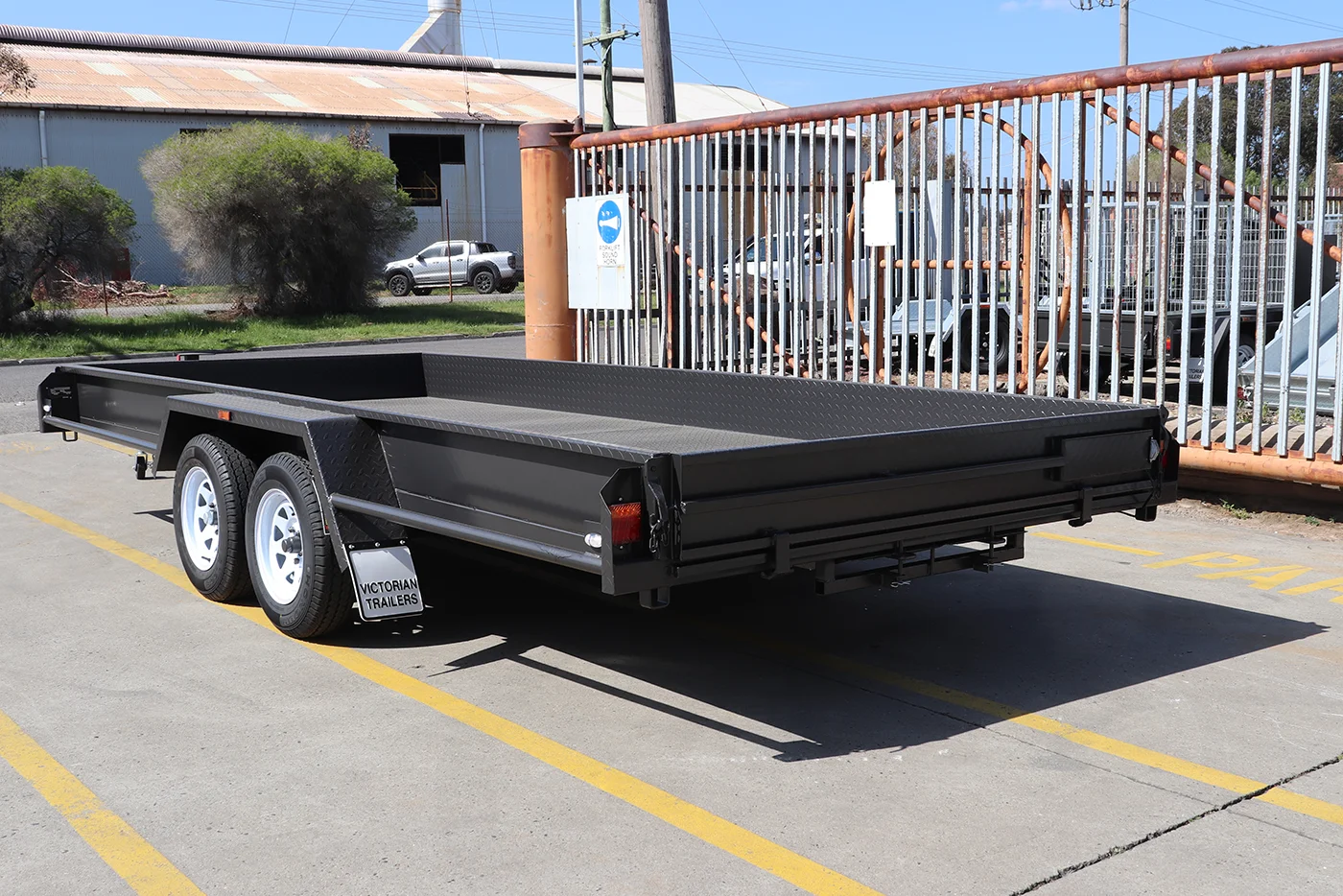

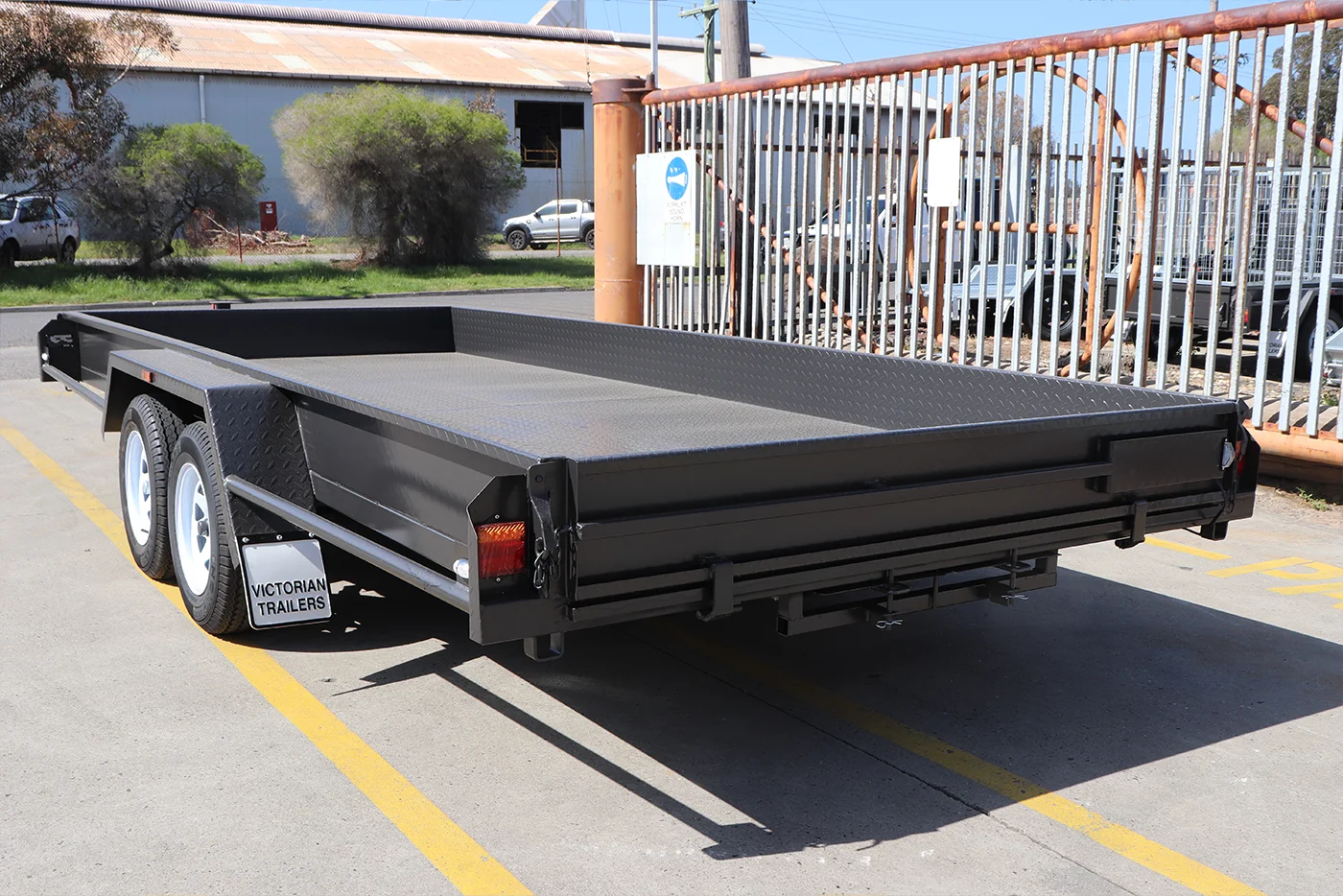

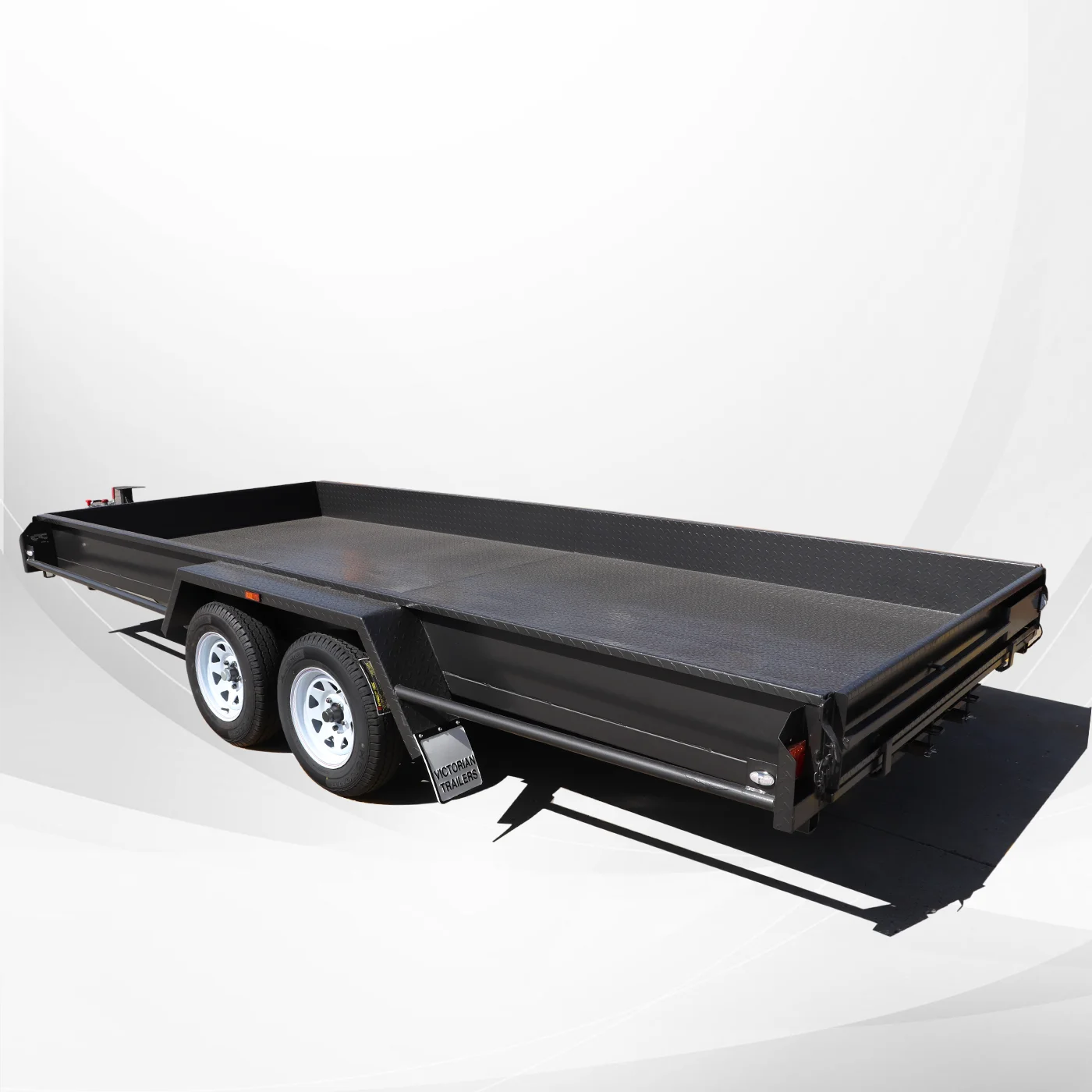

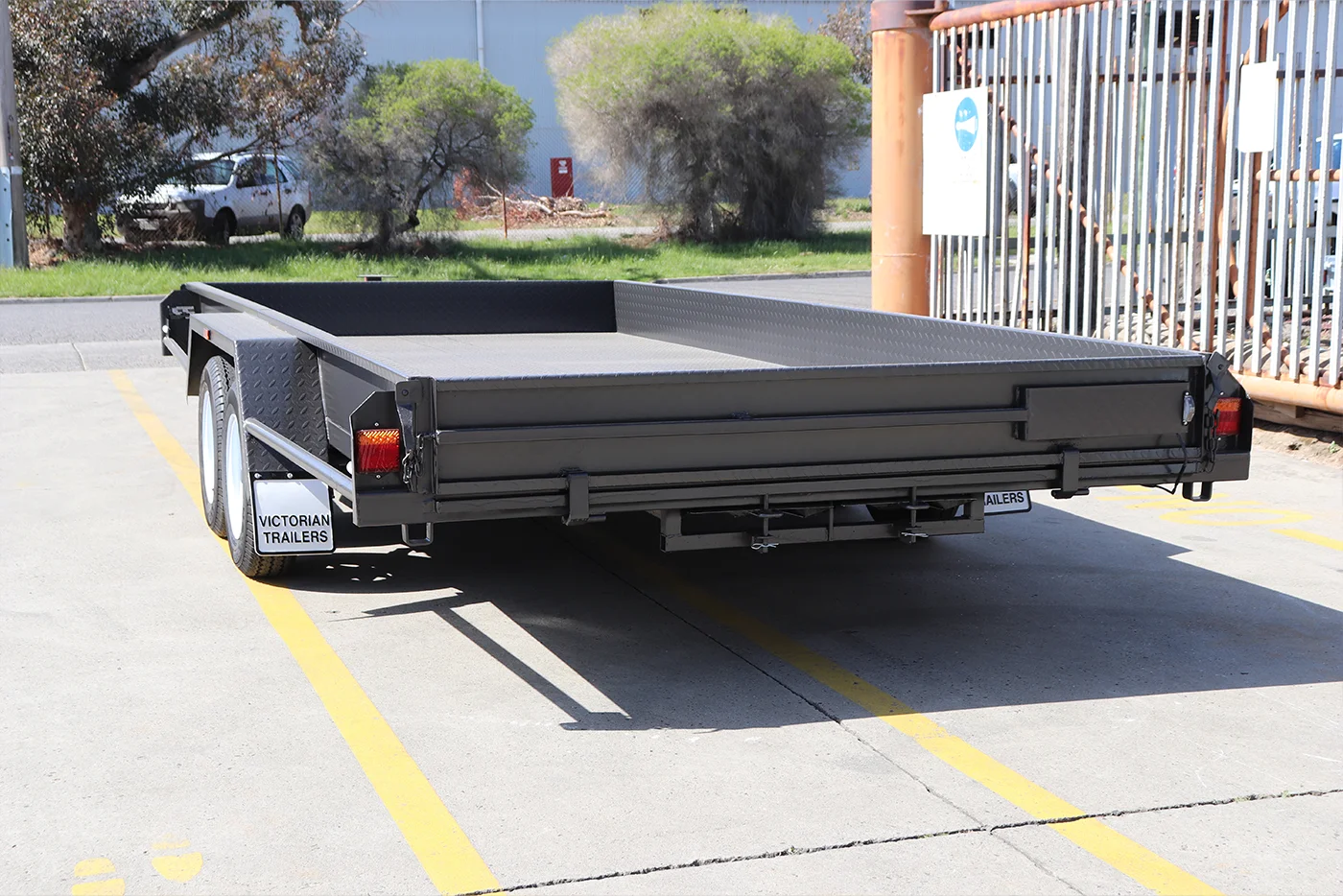

16 × 6 ft 6″ Tandem‑Axle Box Car Carrier Trailer with 10″ Sides
$3,650.00
Heavy-duty 16 × 6 ft 6″ tandem-axle box car carrier trailer with 250 mm boxed sides and front, rated at 2,000 kg ATM (upgradeable). Comes standard with hydraulic (or optional electric) front brakes, sturdy slipper suspension, checker‑plate floor, slide‑under ramps, tie rails, winch post, and ADR-compliant LED lighting. Ideal for secure vehicle transport—please verify specs when ordering.
Description
Description
| Specification | Details |
|---|---|
| Trailer Size | 16 × 6 ft 6″ (~4,880 × 1,980 mm) |
| ATM / GVM | 2,000 kg (some variants rated 2,800 kg) |
| Brakes | Hydraulic or optional electric on front axle |
| Suspension | Slipper‑leaf suspension |
| Axles | 45 mm square solid axles with standard hubs |
| Chassis & Drawbar | RHS chassis, reinforced ~1.5 m RHS drawbar |
| Sides & Front | 10″ (~250 mm) high boxed RHS steel sides + front panel |
| Floor & Guards | Full checker‑plate floor and guards |
| Ramps | 2 × 7 ft heavy‑duty slide‑under ramps |
| Tie‑Downs | Tie rails built into guards + 4 heavy‑duty tie points |
| Winch Post | Front-mounted winch post included |
| Wheels & Tyres | New light‑truck tyres on Sunraysia-style rims |
| Lighting & Plug | ADR‑compliant LED lights; flat 7‑pin plug |
| Warranty | 12‑month structural warranty |
