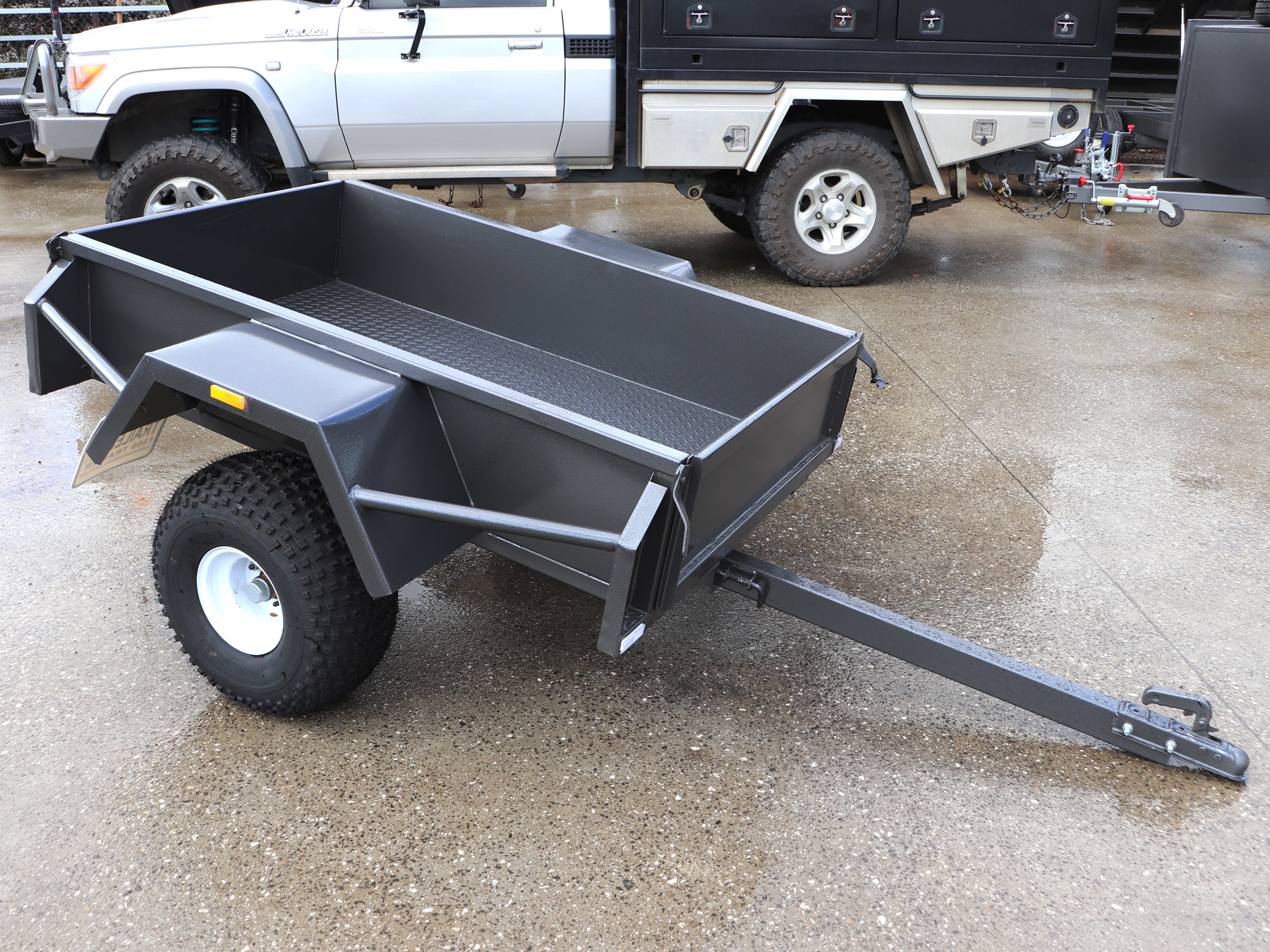

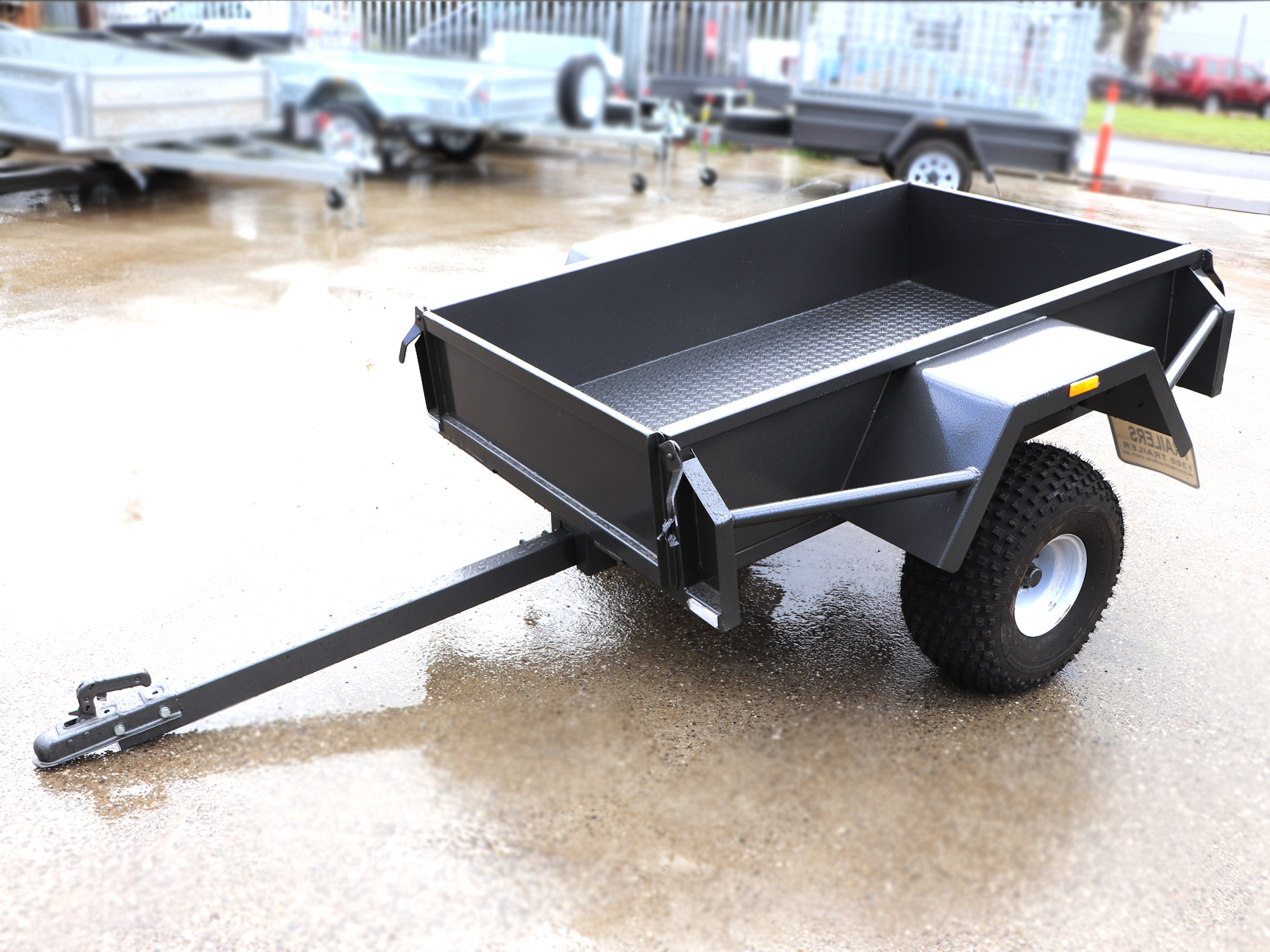

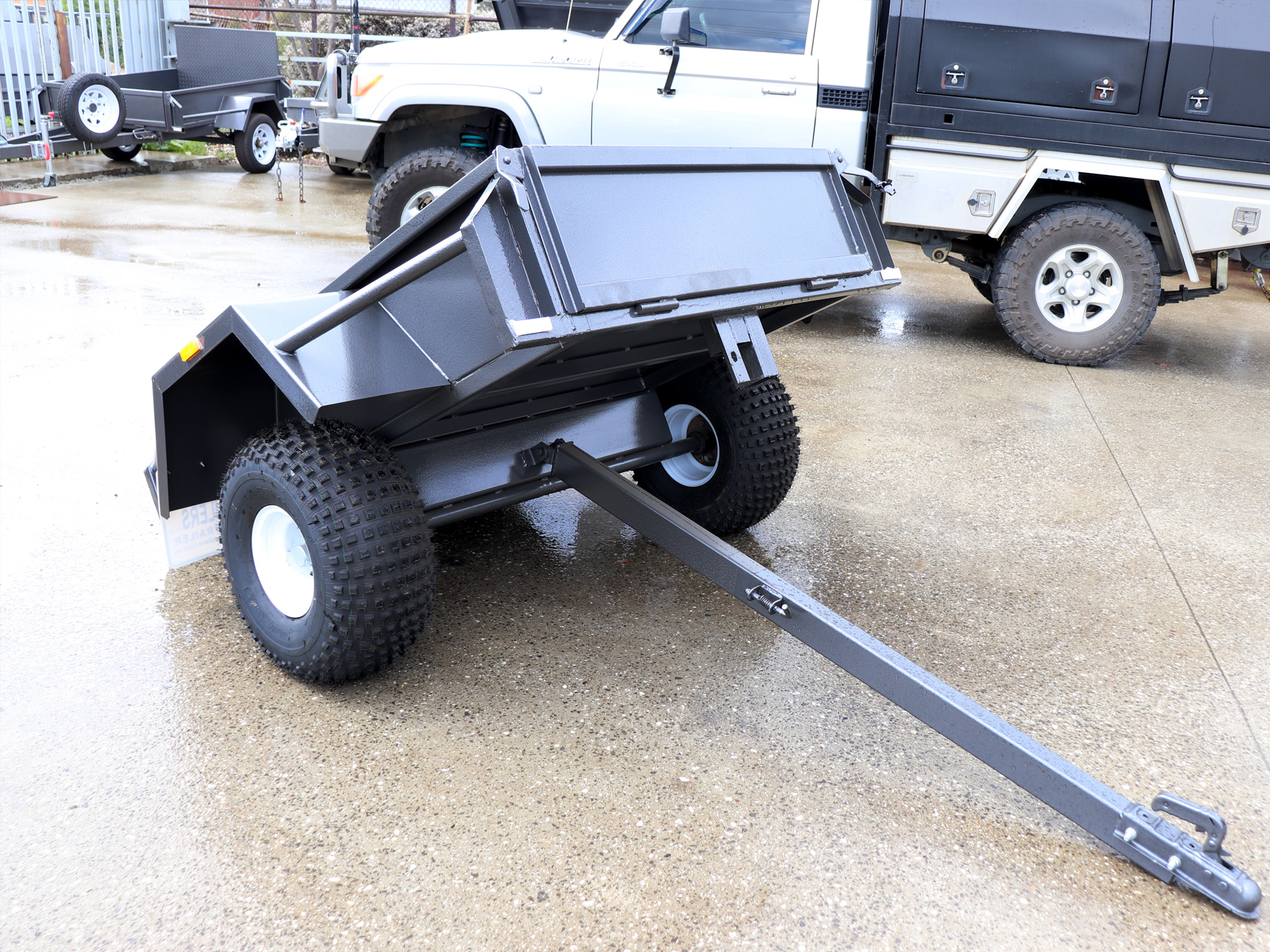

5×3 Single Axle Heavy Duty ATV Tipper Trailer for Sale
$1,255.00
Durable 1.52 m × 0.91 m single‑axle ATV tipper trailer designed for easy hauling. Comes with a sturdy 3 mm RHS drawbar and main chassis rails, hot‑dipped galvanised. Rated at 650 kg ATM with manual tipper and LED lights. Kindly verify specifications when ordering.
Description
Description
| Specification | Details |
|---|---|
| ATM: | 650 kg |
| TARE: | Approx. 245 kg |
| PAYLOAD: | Approx. 405 kg |
| INTERNAL SIZE: | 1.52 m × 0.91 m |
| EXTERNAL SIZE: | 2.85 m × 1.42 m |
| CHASSIS: | 40×40×3 mm hot-dipped galvanised tube |
| FLOOR: | 2.5 mm checker plate steel (2‑piece) |
| SIDES: | 300 mm high fixed checker-fold rear tailgate |
| CAGE: | 600 mm hot-dipped galvanised plug-in cage |
| TIPPER: | Manual tipper mechanism with tailgates |
| JOCKEY WHEEL: | 6″ swing-up type |
| AXLE: | Solid round with spring (eye & slipper) |
| TYRES/WHEELS: | 14″ Sunraysia-style wheels, 5‑stud Ford hub pattern |
| COUPLING: | 50 mm Australian standard |
| PLUG: | 7‑pin flat (round optional) |
| SPRINGS: | Eye & slipper spring |
| SAFETY CHAIN: | 10 mm rated chain |
| LIGHTS: | LED set |
| * | Optional upgrades: spare wheel, toolbox, canvas cover, mud flaps, cargo net |
