6 x 4 Single Axle Heavy Duty Trailer
$2,490.00

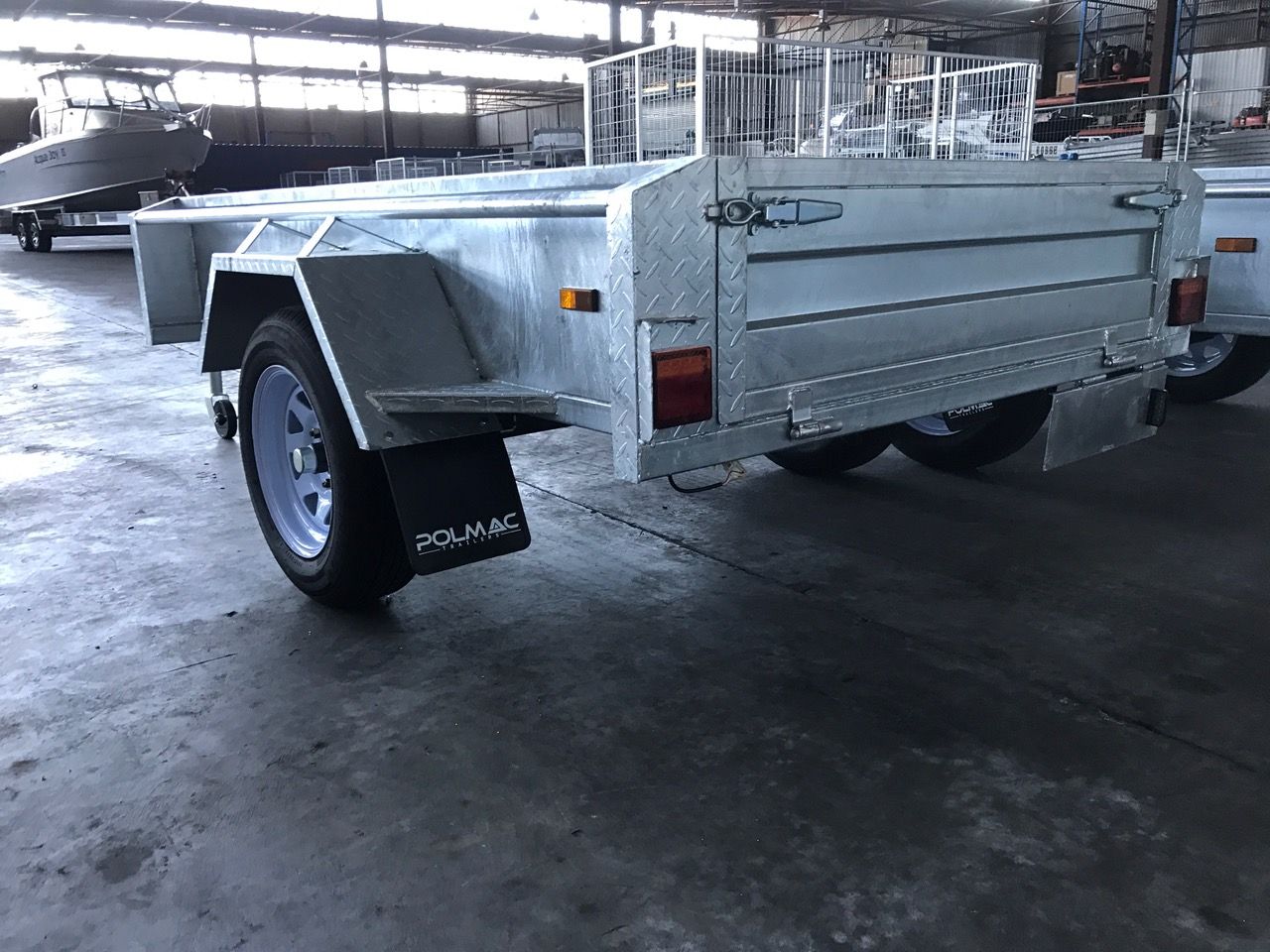

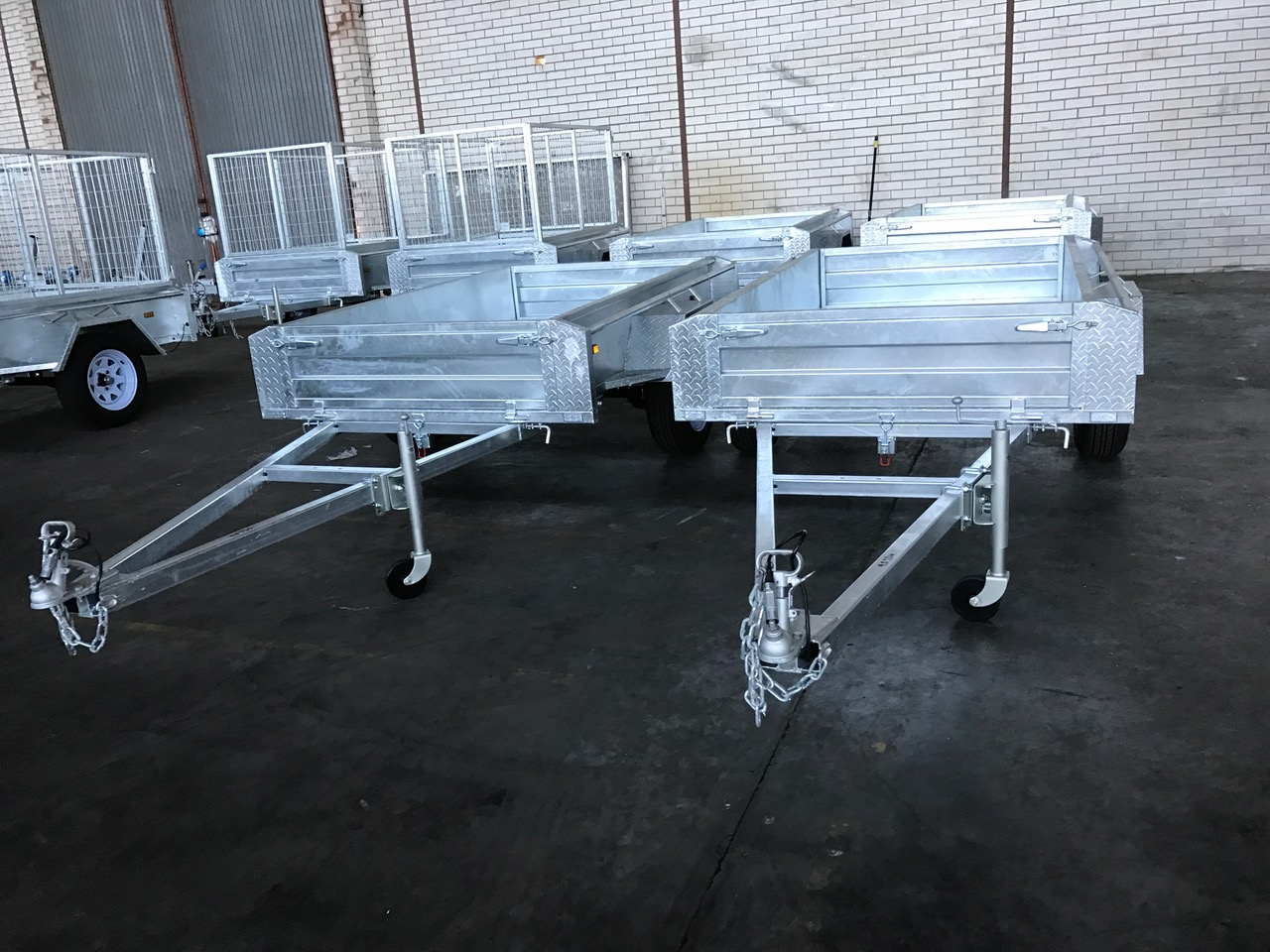

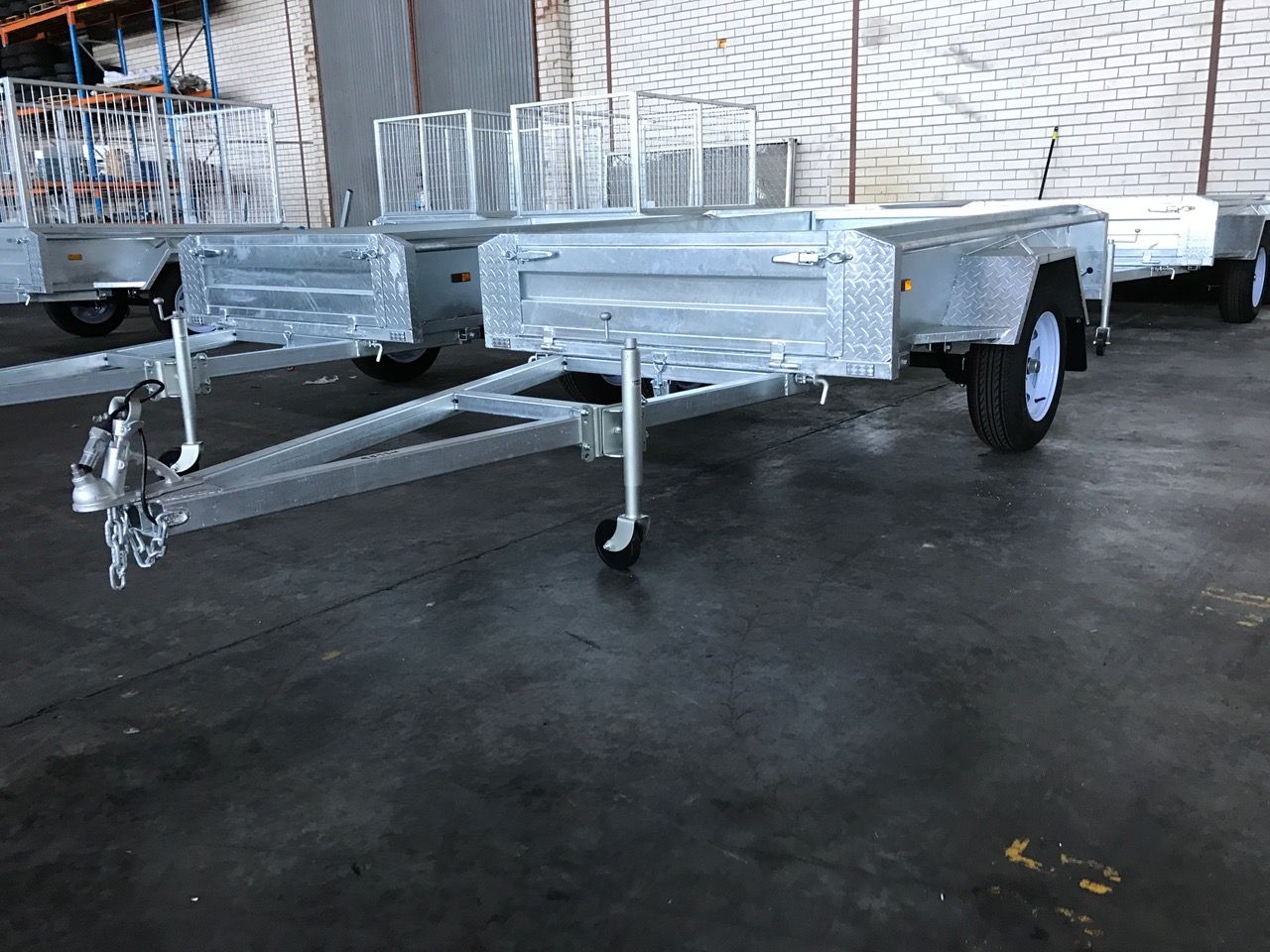

Rugged 1.8 × 1.225 m single-axle box trailer built tough. Rated at 0.75 T ATM with ~250–300 kg tare, it features full checkerplate floor, 300 mm drop-down sides, sturdy RHS chassis, slipper springs, and a 40 mm axle. Standard LED lighting, 6″ jockey wheel, tie rails, and optional accessories like cages, ramps, or spare wheel. Perfect for tradie or light commercial use. Kindly verify specifications when ordering.
Description
Description
| Specification | Details |
|---|---|
| ATM / GVM: | 750 kg (unbraked) |
| TARE: | ≈ 250–300 kg |
| Payload: | ≈ 450 kg |
| Internal Size: | 1 800 × 1 225 mm |
| Sides: | 300 mm deep, drop-down front & rear |

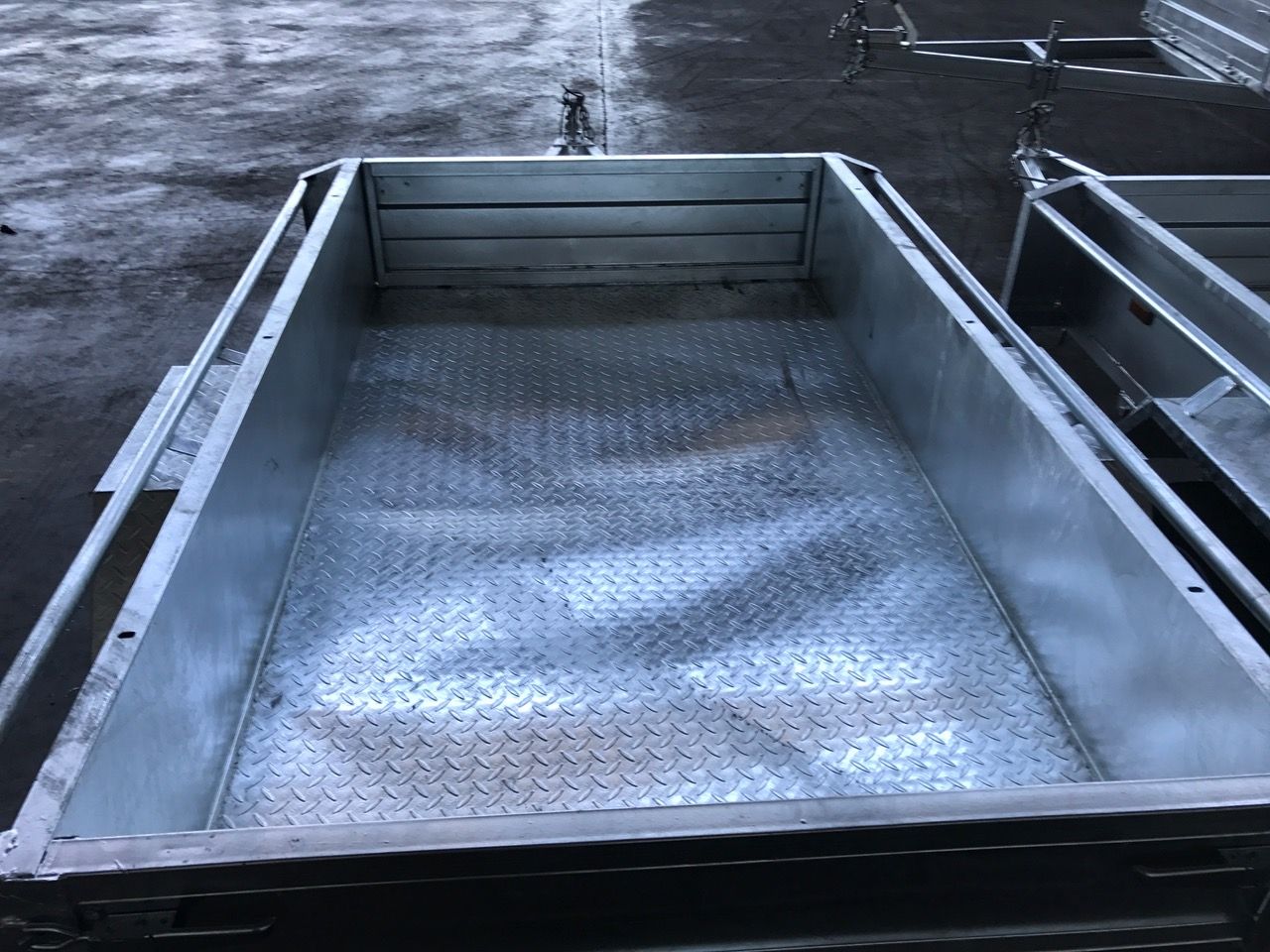

| Floor: | 2.5 mm checker-plate steel |
| Chassis: | 50 × 50 × 2.5 mm RHS |
| Drawbar: | 70 × 50 × 3 mm RHS, ~1,400–1,600 mm long |
| Suspension: | 45–60 mm, 5–6 leaf slipper/eye‑to‑eye springs |
| Axle: | 40 mm solid square or round |
| Wheels / Tyres: | 13″–14″ Sunraysia rims, 185/70 R14 LT tyres |
| Mudguards: | Checkerplate or rolled steel |
| Jockey Wheel: | 6″ swing-up free-mounted |
| Lights / Plug: | LED ADR-compliant, 7‑pin round/flat |
| Tie Rails: | Full-length on sides & gates |
| Extras: | Compliance plate, safety chains, optional cage/ramp/spare |
