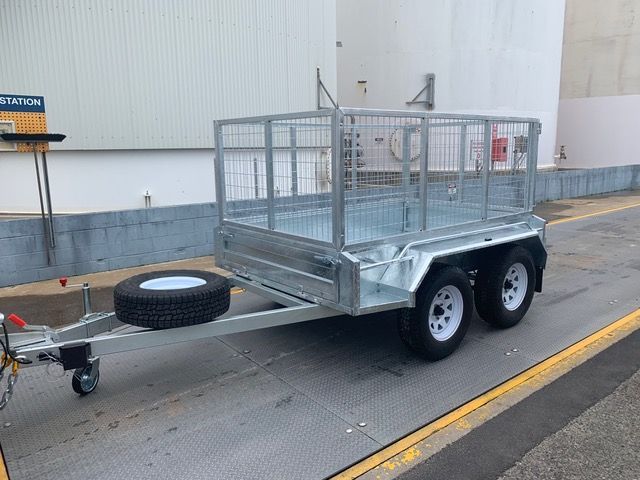

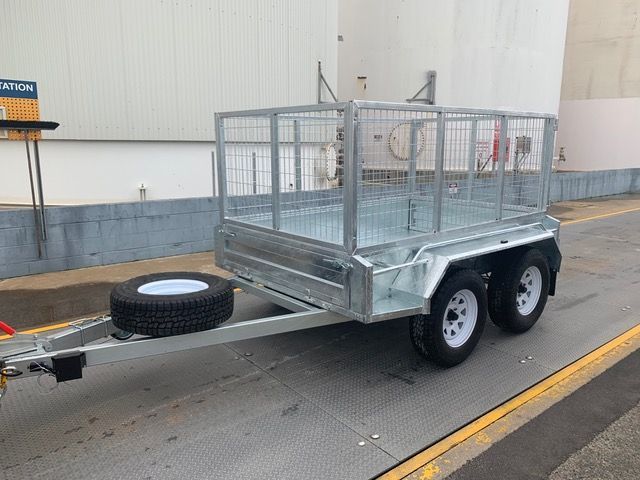

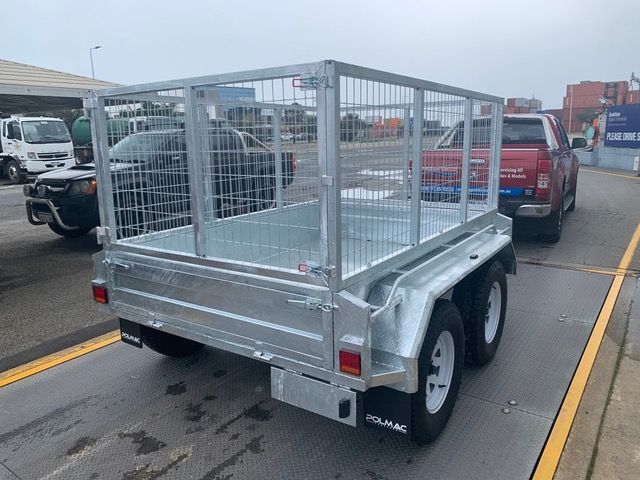

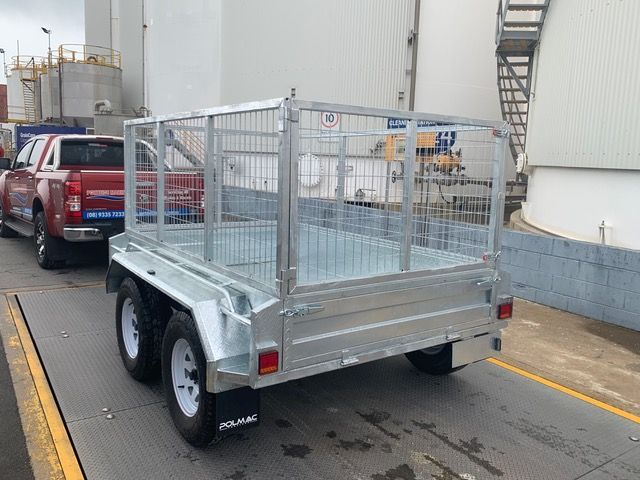

8 x 5 Extra Heavy Duty Off Roader Trailer (Tandem Axle)
$6,690.00
Tough 2.4 × 1.5 m tandem‑axle off‑road trailer rated at 2 T GVM with hydraulic electric brake‑away brakes. Features seamless 2.5 mm checker‑plate floor folded up into 400 mm sides, heavy‑duty galvanised chassis, 60 mm rocker‑roller suspension, 45 mm solid axles, and off‑road 235/75 R16 wheels. Includes LED lighting, swing‑up jockey wheel, and rated for rugged use. Kindly verify specifications when ordering.
Description
Description
| Specification | Details |
|---|---|
| ATM / GVM: | 2000 kg (hydraulic electric brake-away brakes) |
| TARE: | 640 kg |
| Payload: | 1360 kg |
| Tray Size: | 2400 × 1500 mm |
| Floor: | 2.5 mm checker‑plate, seamless rolled into 400 mm sides |
| Sides: | 400 mm high, fully galvanised |
| Drawbar: | 1800 mm long, 100×50×3 mm RHS |
| Chassis: | 50×50 mm RHS with 300 mm cross‑member spacing + centre reinforcements |
| Suspension: | 60 mm rocker‑roller with 6‑leaf springs |
| Axles: | 45×45 mm solid |
| Brakes: | Hydraulic brake with hand‑brake |
| Tyres / Wheels: | 235/75 R16 off‑road wheels |
| Lights: | LED tail lights with wiring & reflectors |
| Jockey Wheel: | Included heavy‑duty swing up |
| Safety Chains: | 2 × rated chains |
| * | Optional extras: 800 mm cage, spot toolboxes, spare wheel, ramps |
