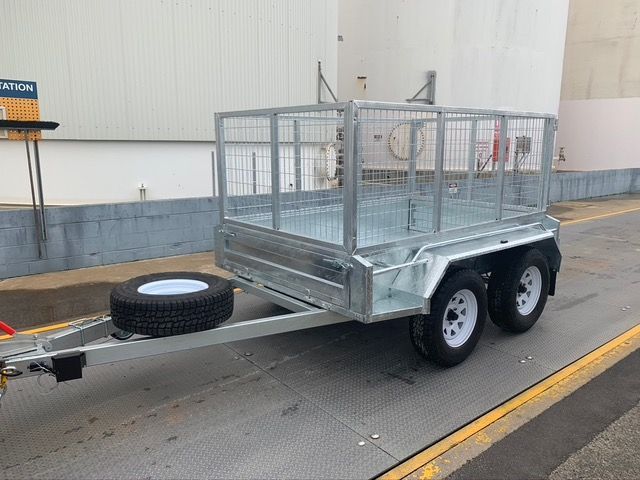

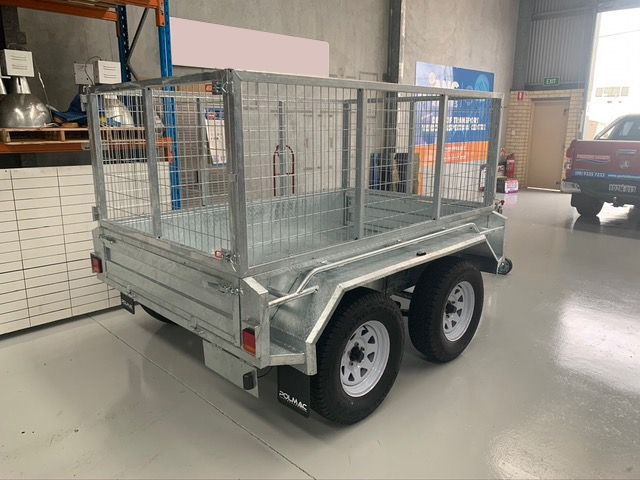

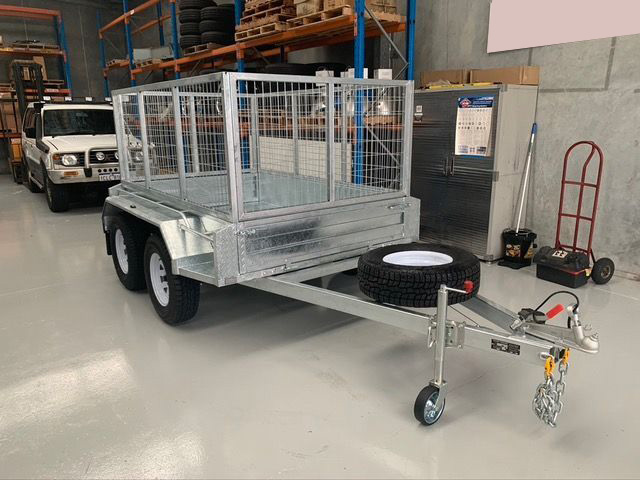

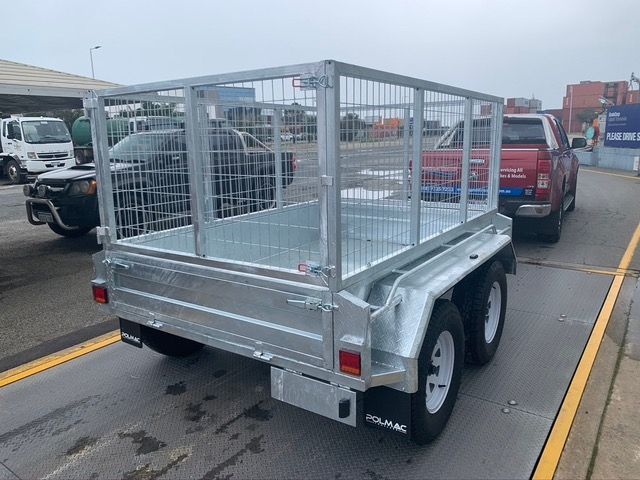

8 x 5 Tandem Axle Trailer
$4,690.00
Compact yet heavy-duty 2 m box trailer, built on a galvanised 100 × 50 mm chassis with mechanical brakes, 60 mm rocker-roller suspension, and dual 50 mm axles. Features 2.4 × 1.53 m checker-plate floor, drop-down 300 mm sides, LED lighting, step-up platforms and full tie-down rails. Includes swing-up jockey wheel; kindly verify specs with supplier when ordering.
Description
Description
| Specification | Details |
|---|---|
| ATM / GVM: | 2 000 kg (mechanical brakes) |
| TARE: | Approx. 480–550 kg |
| Tray Size: | 2 400 × 1 530 mm |
| Sides: | 300 mm high, fully welded drop-down gates |
| Floor: | 2.5 mm checker-plate |
| Chassis: | 100×50 mm RHS drawbar; 50×50 mm chassis rails |
| Suspension: | 6‑leaf 60 mm rocker‑roller springs |
| Axles: | Dual 50 mm round solid axles |
| Brakes: | Mechanical override brakes (4 wheels) |
| Wheels/Tyres: | 14″ Sunraysia rims with 185/70 R14 LT tyres |
| Coupling: | 50 mm override-type |
| Jockey Wheel: | 8″ swing-up |
| Lights: | LED ADR-compliant tail lights |
| Plug: | 7‑pin flat or round |
| Tie Rails & Platforms: | Full-length tie rails, step-up side platforms |
| Extras: | Removable drop-down gates, ladder rack points, safety chains |
