BG 480K Boat Trailer (Single Axle)
$5,390.00
BG 550 Boat Trailer (Tandem Axle)
$6,999.00

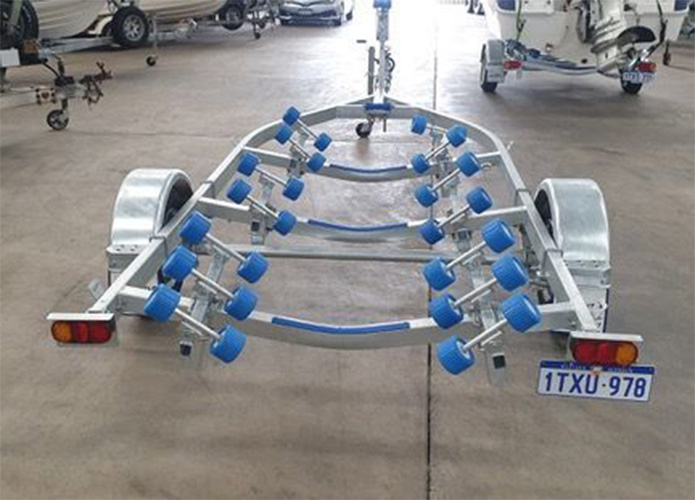

BG 550 Boat Trailer (Single Axle)
$5,999.00
Reliable 5.9 m × 2.1 m single-axle boat trailer built on a fully galvanised 75×50 mm RHS chassis. Rated at 1.5 T ATM with mechanical brakes, it features a 5-leaf suspension, swing-up jockey wheel, LED lights, and multi-roller system. Kindly verify specifications when ordering.
Description
Description
| Specification | Details |
|---|---|
| ATM / Rating: | 1500 kg (mechanical brakes) |
| TARE: | 360 kg, fully galvanised |
| TOTAL LENGTH: | 5.9 m |
| TOTAL WIDTH: | 2.1 m |
| DRAWBAR LENGTH: | 1800 mm |
| CHASSIS: | 75 × 50 × 3 mm RHS |
| CROSS BEAMS: | 75 × 75 × 3 mm |
| DRAWBAR SECTION: | 80 × 80 × 3 mm |
| AXLE: | 50 mm round |
| SUSPENSION: | 5‑leaf springs |
| MUDGUARDS: | Galvanised |
| TYRES: | 185 × 70 LT14 on galvanised rims |
| LIGHTS: | LED sealed |
| JOCKEY WHEEL: | Swing-up |
| SAFETY CHAINS: | 2 × rated chains |
| PLUG: | 7‑pin round or flat |
| ROLLER SETUP: | Multi-roller, drive-on ready |
